NOA's cutting-edge, multi-channel CD-ripping tool designed for high-throughput processing of audio CDs with best-in-class transfer quality.
CDLector's user interface has been designed for comprehensive overview as well as streamlined operation. Explore the application by clicking the buttons or the picture itself.
German technology. Dozens of quality-related features.
Hundreds of channels running smoothly worldwide as proof.
Designed to drive projects of all sizes. From standalone setups to large factories.
Best cost-performance ratio in the market. Guaranteed.
No NOA customer EVER had to re-digitize content!
NOA, Release Manager
"When it comes to long-term preservation of invaluable archive assets, transferring archive-grade audio CD contents is not a task one leaves to amateurs. NOA has designed and perfected a professional tool for the mass ripping of archive CDs, guaranteeing the highest archiving quality standards."

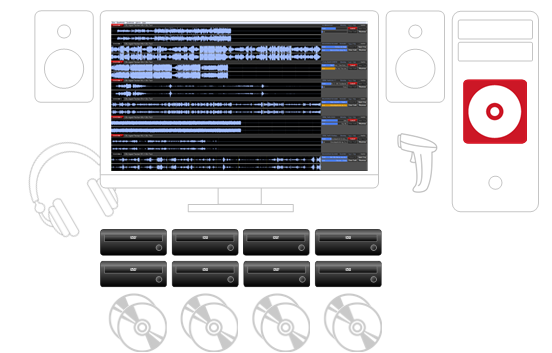

NOA’s CDLector is a mass CD-ripping system that is capable of handling up to eight parallel drives. Designed to extract audio from CDs into digital audio objects with perfect control over interpolation, it delivers optimal results even for heavily damaged items.

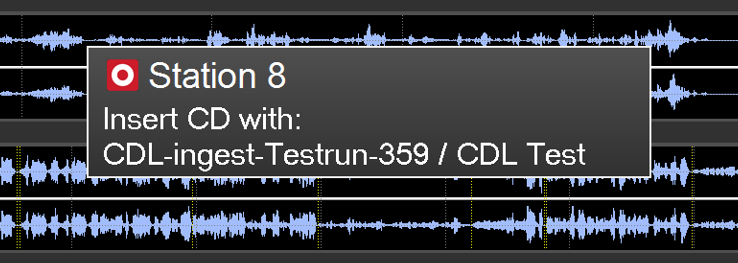

By prompting to insert the correct carrier into the drive with automatic opening/closing of the corresponding drive in automatic mode, considerably high throughput of up to 1,000 CDs per day (2 shifts operation) is possible.
During operation, CDLector can be set to various, semi-automatic reading modes to achieve the best possible output even of damaged discs.

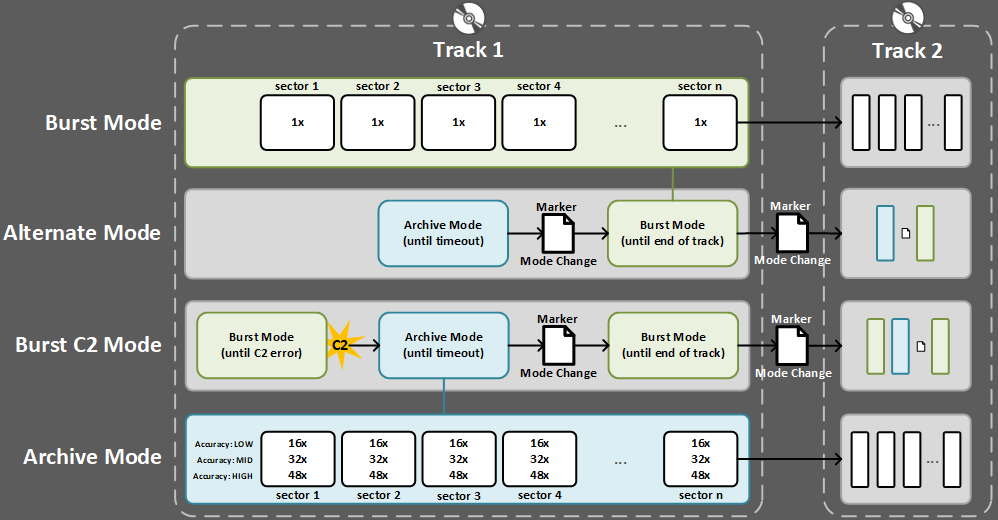

| Archive Mode | Alternate Mode | Burst C2 Mode | Burst Mode |
|---|---|---|---|
Reads all sectors up to 64 times and will only move on to read the next sector if it has an exact match between two read results (recommended for archives). |
Begins in Archive Mode, shifts to Burst Mode for uncorrectable errors, annotating changes until the current track ends. Automatically reverts to Archive Mode at the start of the next track. |
Reads in a Burst Mode with decreased sector synchronization attempts until a C2 error is detected. From there on it switches its reading mode to Archive Mode and upon further failure into Burst mode, annotating the read mode changes. The last active mode is kept until the end of the current track, switching back to Archive Mode on the start of the next. |
For when other methods fail. A high-speed single-pass mode (typically 28x) with minimal transfer security. |
When mass-ripping archive-grade CDs, preserving high quality is essential. To meet this standard while also ensuring cost-effectiveness, NOA has devised multiple alternatives to suit different needs. Regardless of the chosen mode, CDLector assures superior transfer quality, exceeding average standards, thus ensuring long-term preservation.

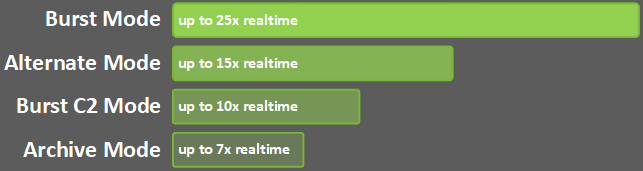

At opposite ends of the spectrum lie the fast yet less controlled Burst Mode and the meticulously thorough but comparatively slower Archive Mode.
CDLector maximizes the advantages of these approaches by intelligently blending them and employing smart switching, while meticulously recording each mode change as a time-based marker.
As some of these alternative modes depend on C2 error reporting from CD drives (hardware), NOA diligently tests current market drives to offer suitable recommendations and assurances.

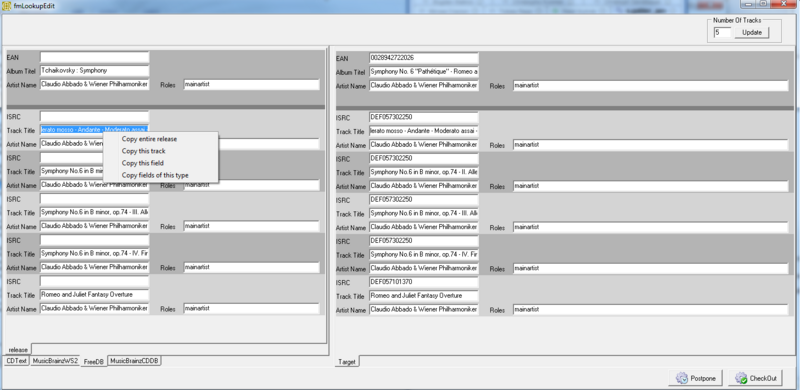

Beyond its capability to retrieve ISRC codes and CD Text in the extraction process, CDLector also enables access to external and third-party databases in a subsequent step (after grabbing) for obtaining track names and additional descriptive metadata. With MetaDataFinder, an optional companion tool, users can review, select, and refine these track names which may originate from different sources (internal and external databases) to ensure the most accurate representation of the CD's content.

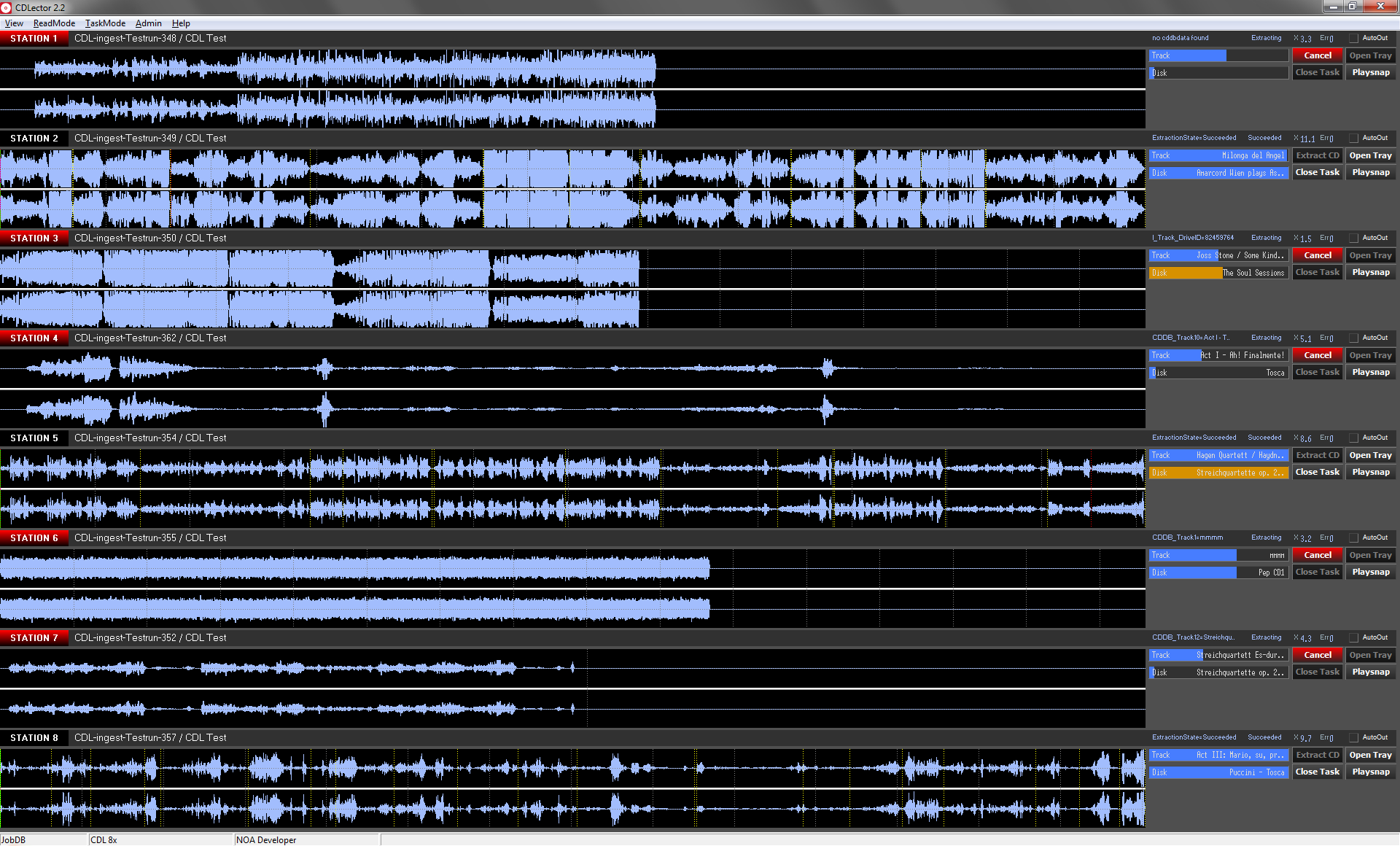

Designed for fast operation, CDLector's interface is designed primarily for quick interaction when loading and closing tasks as well as providing a comprehensive overview on all channels running in parallel.
Operational errors are effectively eliminated with the aid of clear and precise barcode labels.

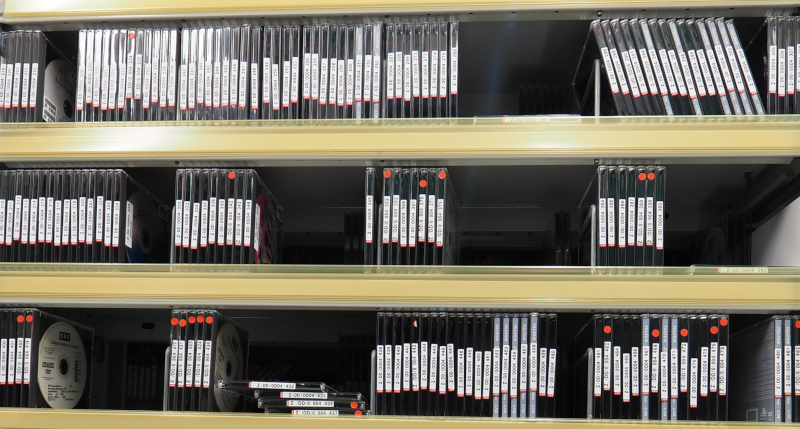

Given that contemporary hardware manufacturers have predominantly shifted towards producing Blu-ray drives, securing suitable CD drives has become an indispensable aspect for transferring CD collections, which are still widely prevalent in archives worldwide.

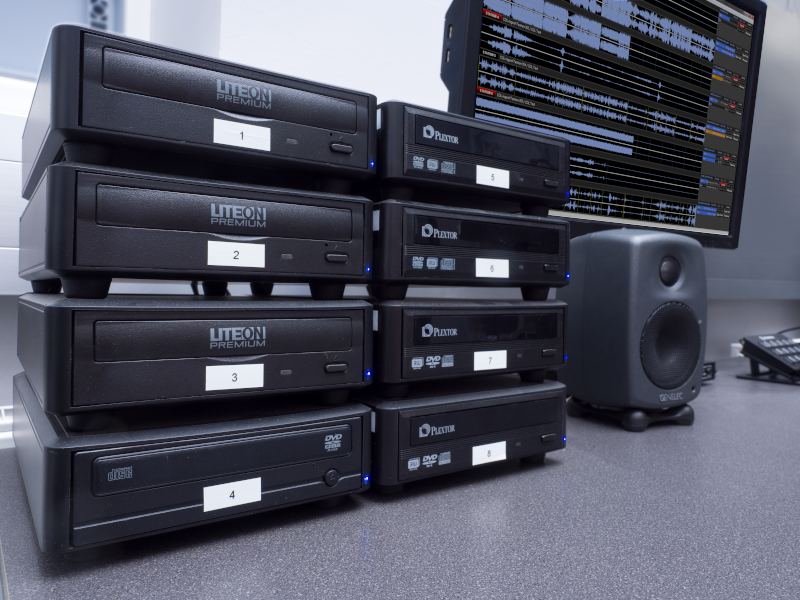

As it is harder and harder to get reliable CD ripping drives with proven C2 behaviour, NOA delivers specifically selected CD drives which are proven to get best results in interpolation quality.
Exclusively chosen by NOA through a rigorous testing process, CDLector employs only the finest CD drives presently available on the market.
CDLector, like all NOA solutions, is designed to run on commercial off-the-shelf (COTS) hardware and to operate seamlessly on standard Windows operating systems. This approach guarantees that the hardware underlying NOA's solutions is not only easily maintainable and accessible but also highly reliable, offering users peace of mind with its long-term stability and dependability.
For optimal operation, NOA provides:
Product brochure introducing NOA CDLector software
DOWNLOAD v1.0|05/01/2024
