NOA's professional hardware components are meticulously engineered to enhance the performance of our ingest tools, facilitating the highest quality signal transfers for archive digitization.

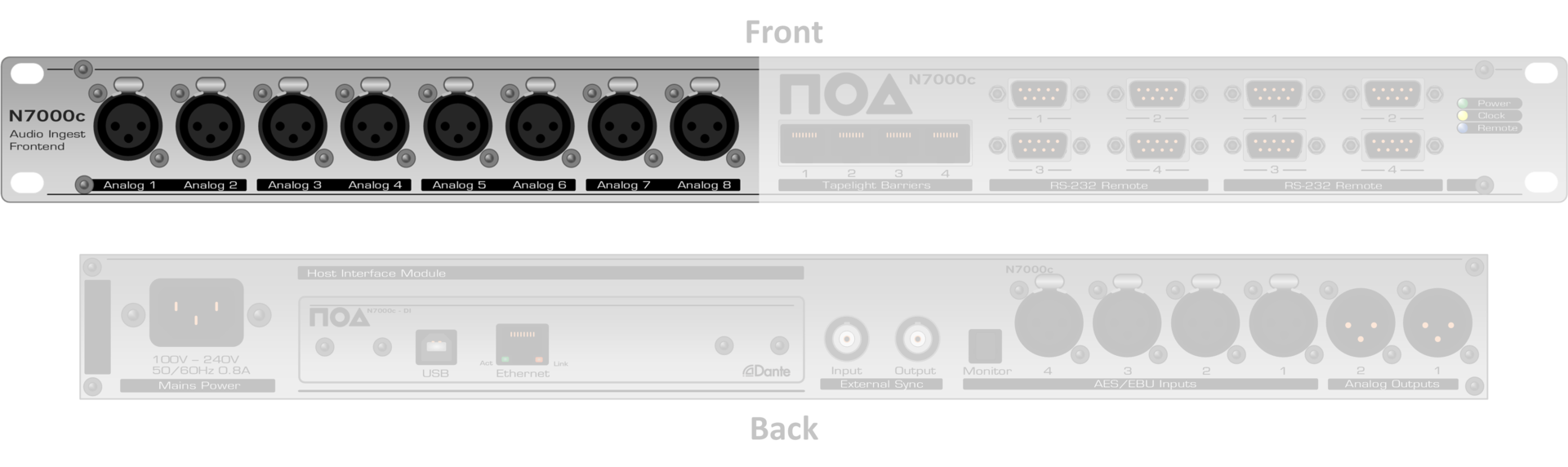

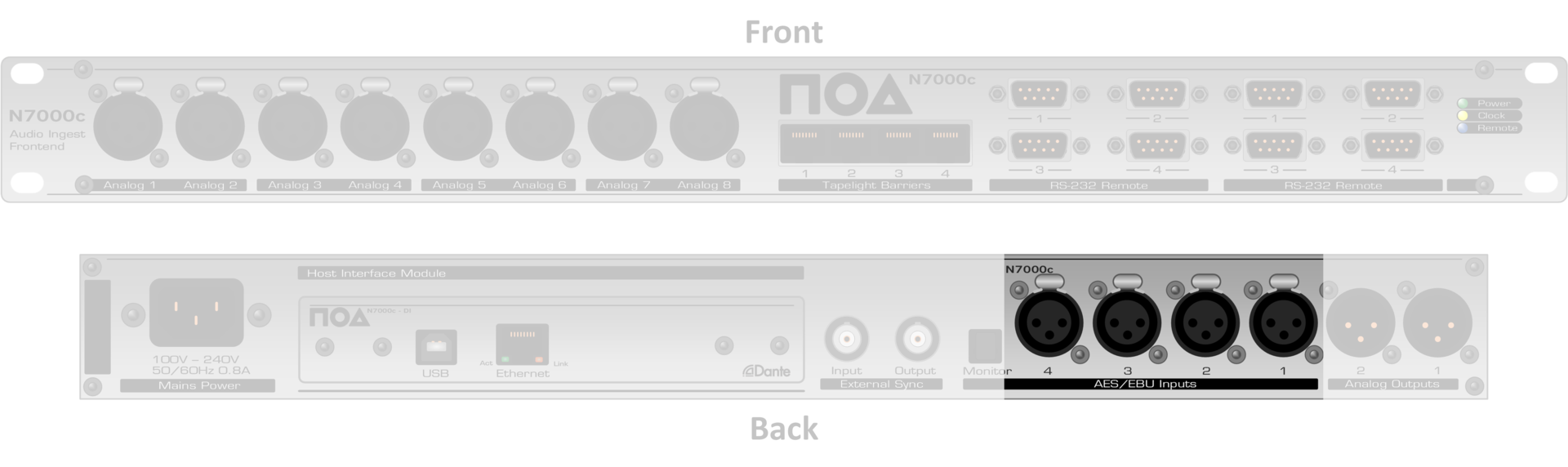

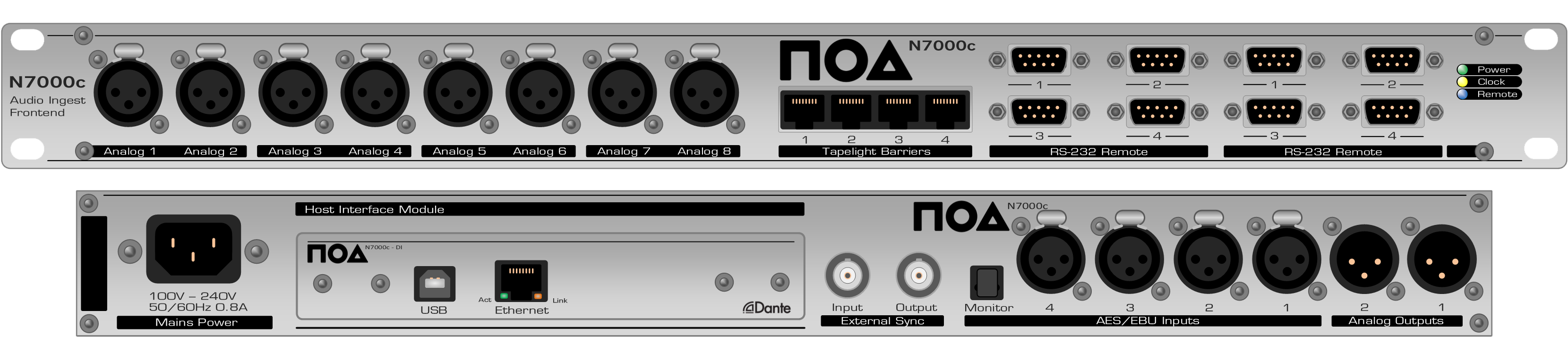

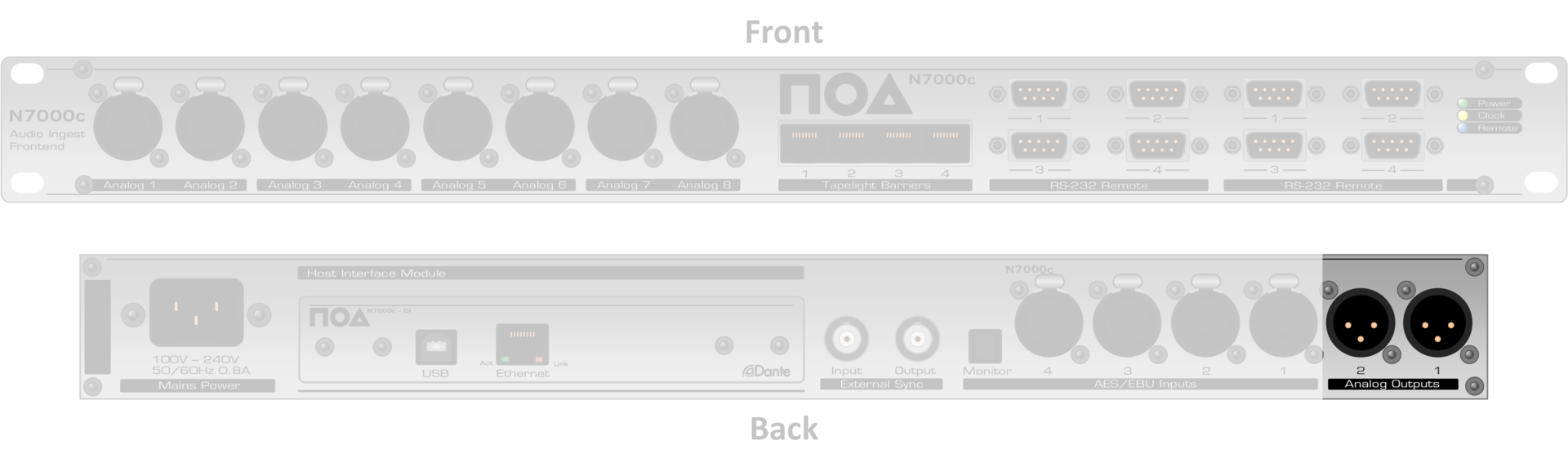

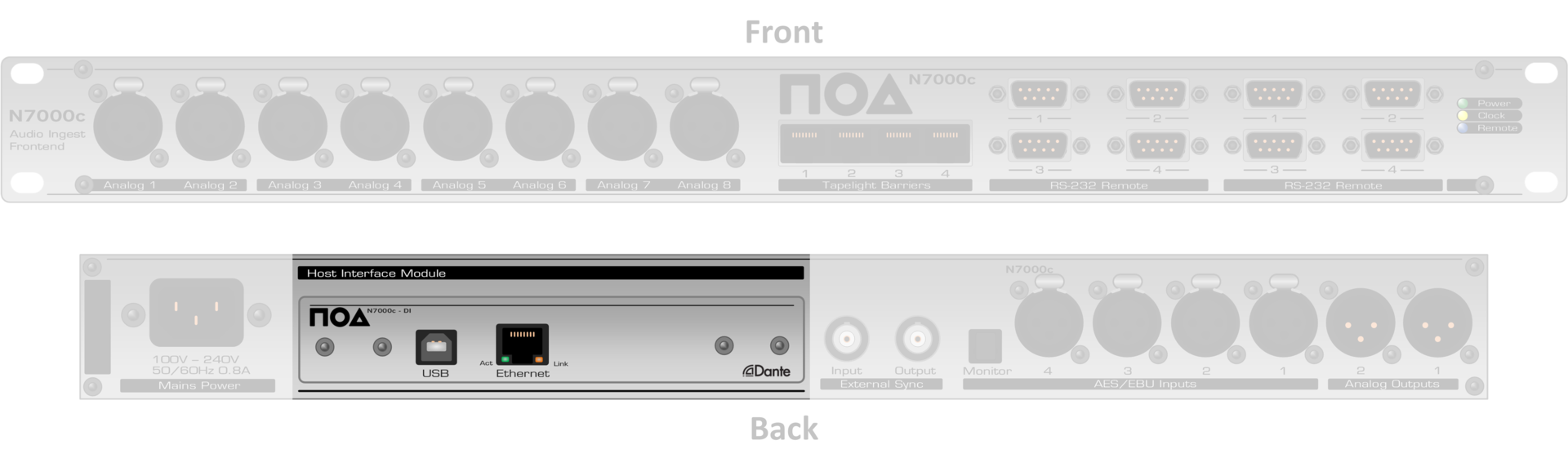

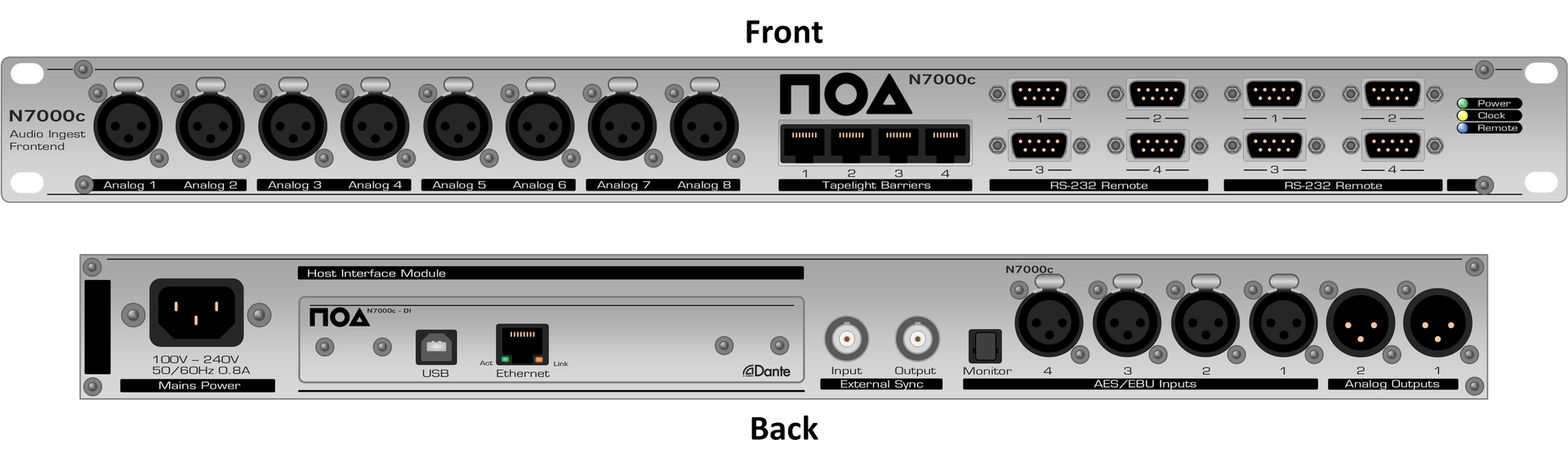

The N7000c hardware fulfills the stringent quality standards for archival audio transfers and offers a range of distinctive features that greatly enhance its cost-effectiveness.
NOA, CTO
"The digitization of media is primarily about integrating and linking technology from many decades. If this requires special hardware, we build it. This is the only way to create high-quality processes."

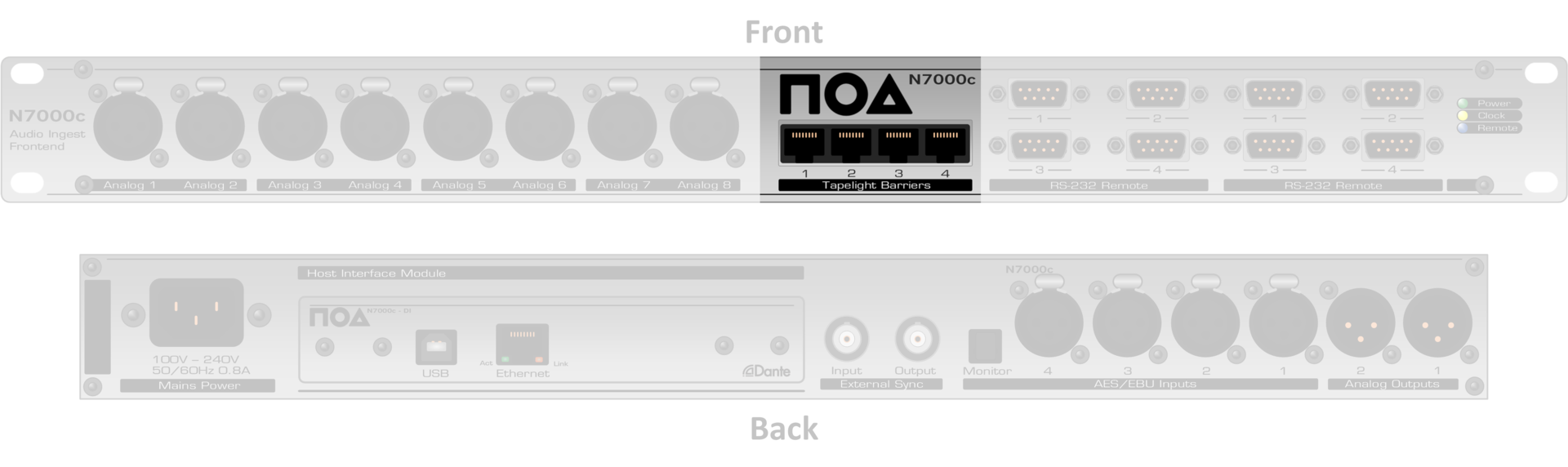

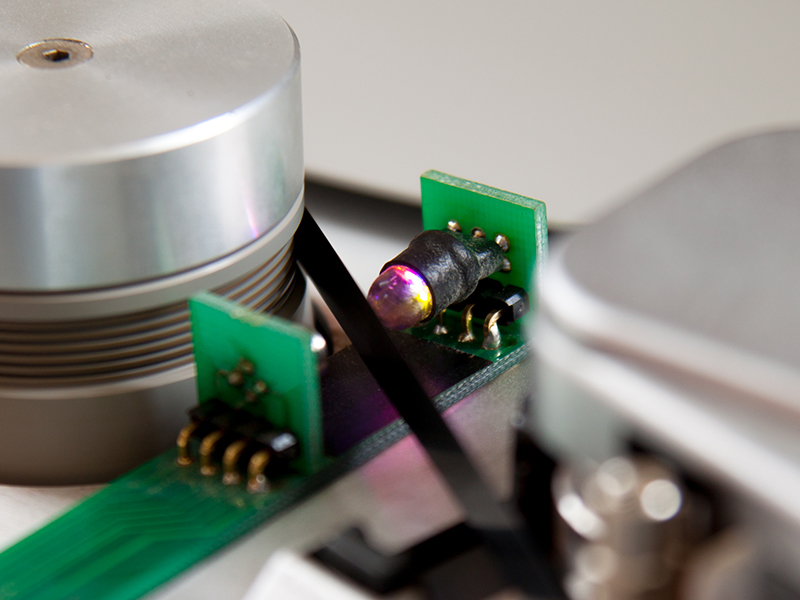

The TapeLightBarrier module, equipped with a light diode and a light receptor, is mounted directly onto a tape player and linked to the N7000c audio hardware through a CAT cable. As the tape glides by, it induces varied readings within the module. These readings are then decoded by NOARecord, marking specific points along the recording's timeline.
Detection of:

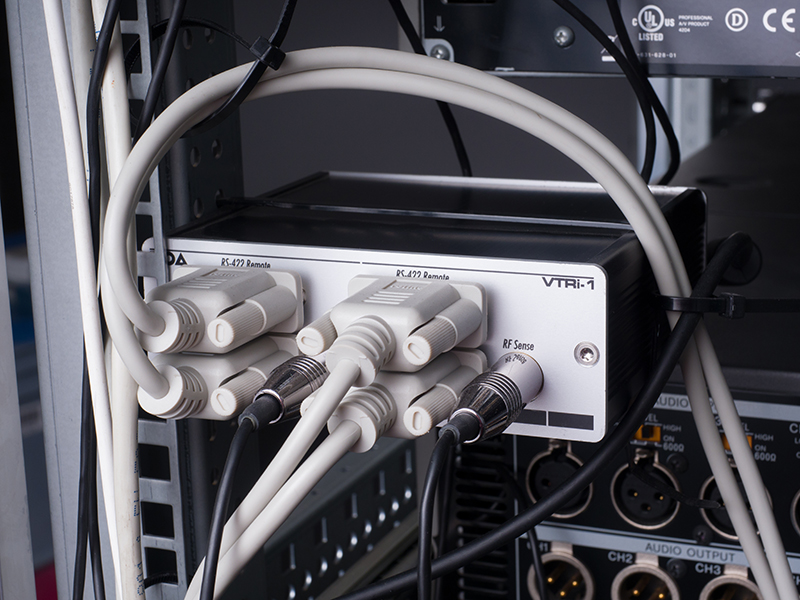

Linked in between video players and ingest station, the VTRi-1 module is in charge of forwarding remote control signals to the players as well as returning ISR events (provided by VTRs) and/or the logged RF trace (grabbed by a special sensor plate) - both indicating transfer errors- back to the recording software FrameLector.
In FrameLector, both transfer quality indicators will be logged to enable the unambiguous assessment of success of the digitization. As ISR events and RF traces are based on actual physical interaction between tape and reading head, this kind of electrical metadata does not produce false positives.

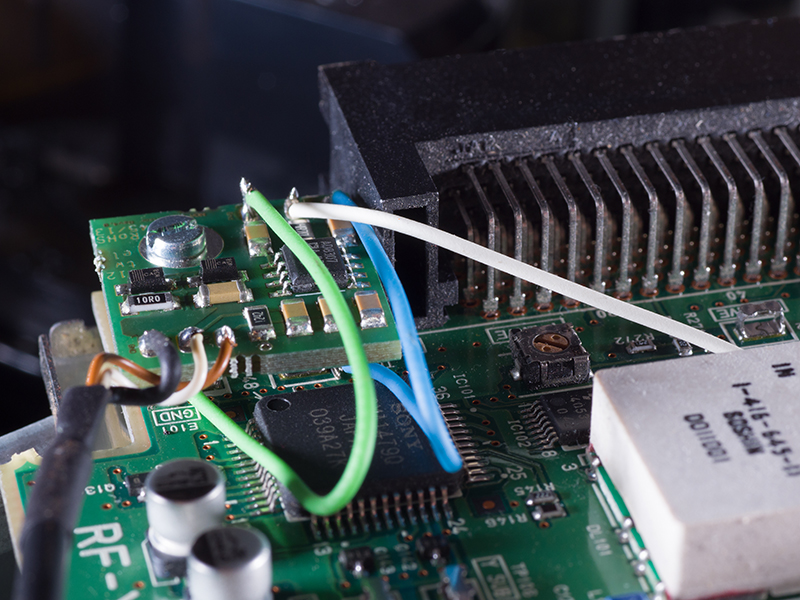

Whereas ISR events are forwarded by VTRs via a designated port, grabbing the RF signal during a running recording requires a more direct intervention into the hardware. With the help of a sensor plate, which is soldered onto specific points on the VTR's boards, the RF signal is grabbed and forwarded to the recording software FrameLector, where a thorough analysis and interpretation of the electrical signal gives hints on problematic transfers.
A broad variety of legacy players are eligible to be equiped with the sensorplate, including players for the most common archival formats including U-Matic, 1-inch C, DV/DVCPro, Betacam SP, and Betacam ST.
Explore "Expert Mode" for additional details!

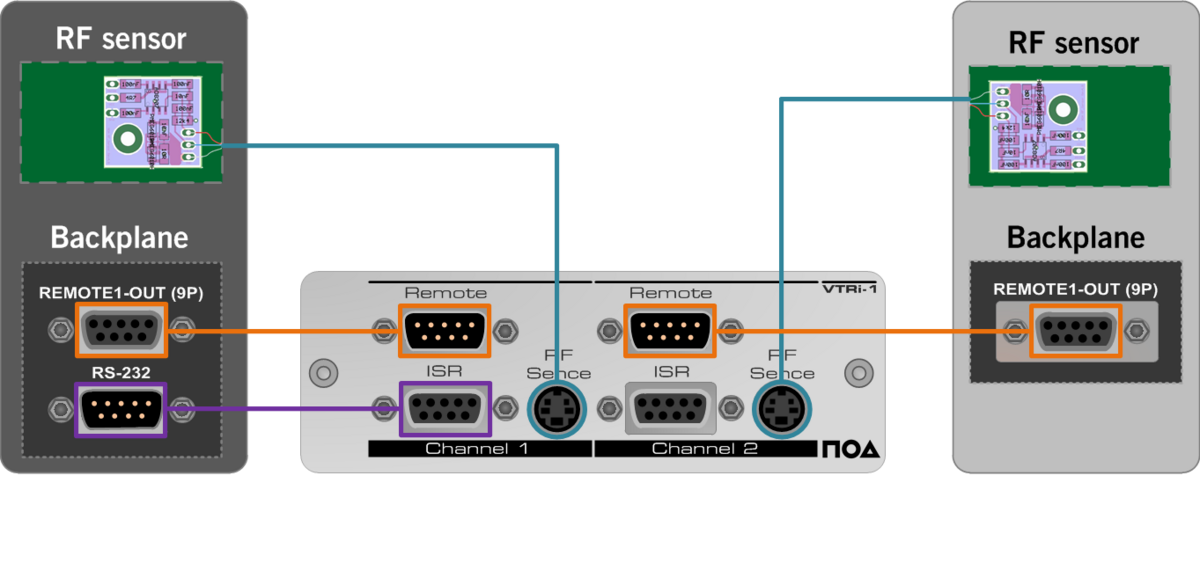

Depending on the type of player, remote as well as ISR and/or RF cables are plugged into the VTRi-1 module, which itself is connected to the FrameLector workstation via USB connection.
Only the best of the best CD drives are eligible to be used for mass CD-grabbing with CDLector.
Given that contemporary hardware manufacturers have predominantly shifted towards producing Blu-ray drives, securing suitable CD drives has become an indispensable aspect for transferring CD collections, which are still widely prevalent in archives worldwide. As it is harder and harder to get reliable CD ripping drives with proven C2 behaviour, NOA delivers specifically selected CD drives which are proven to get best results in interpolation quality.
Exclusively chosen by NOA through a rigorous testing process, CDLector employs only the finest CD drives presently available on the market.
ingestLINE Product Family
ingestLINE is a group of professional, purpose-built digitization tools for archive preservation projects, offering flawless quality and outstanding cost-effectiveness...
NOARecord audio digitization tool
FrameLector video digitization tool
CDLector audio digitization tool
Product brochure introducing NOA N7000 hardware
DOWNLOAD v1.0|11/08/2023
